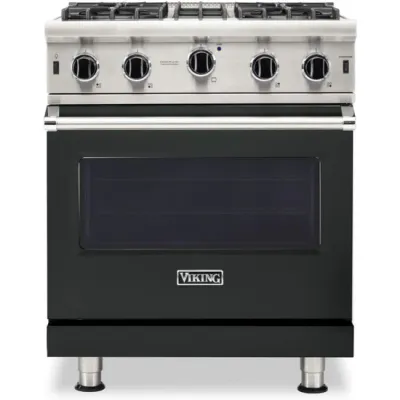

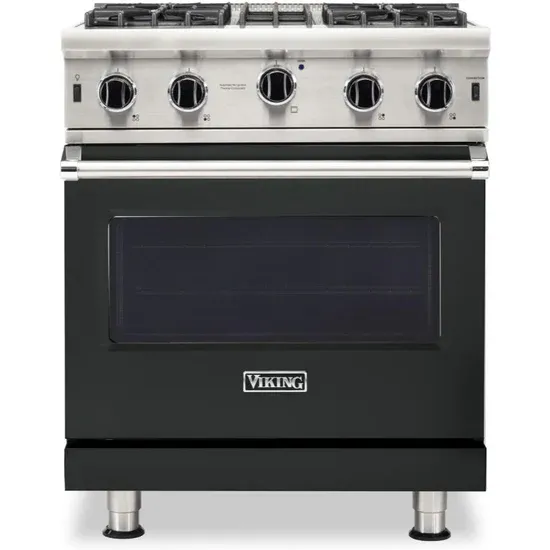

30"W./24"D. Gas Open Burner Range-4 Burners-Antique Bronze- LP

General

Series Name 5 Series

Fuel Type Natural Gas

Installation Type Freestanding

Color Black

Manufacturer Color Antique Bronze

Appliance Care

• Removable Porcelain Burner Bowls Provide Easy Clean-Up

• Burner Caps are Easily Removable for Quick Cleaning

Cooktop

Burners/Elements 4

Burners/Elements Output (4x) Burners: 15,000 BTU

Burners Open

Oven

Capacity (cu. ft.) 4.0 cu.ft.

Number of Ovens Single

Programs

• Natural Airflow Bake

• Convection Bake

• Infrared Broil

• Convection Infrared Broil

• Convection Dehydrate

• Convection Defrost

Features

Technologies

• VariSimmer™ Setting for All Burners

• SureSpark™ Ignition for All Burners

• Gourmet-Glo™ Infrared Broiler

• ProFlow™ Convection Air Baffle

Convection Yes

Oven Light Yes

Additional Information

Broil Burner: 18,000 BTU

Oven Burner: 30,000 BTU

Automatic Re-ignition

6 Rack Positions

6 Functions

Halogen Oven Lights

Blackchrome™ Knobs

Removable Porcelain Burner Bowls

Heavy-Duty, Porcelainized, Cast-iron Removable Surface Grates

Electrical Information

Information 120 V

Accessories

Optional

• BG8530SS: 8" H. Backguard for 30" Range

• HS24530SS: High Shelf for 30" range

• P24CSTSS: Countertop Side Trim (2 Pieces)

• P30CRTSS: Countertop Rear Trim for 30" Range

Dimensions

Class Width 30"

Width 29.88 inch(es) / 75.9 cm

Height 35.87 inch(es) / 91.1 cm

Depth (Without Handles) 28.03 inch(es) / 71.2 cm

Depth (Including Handles) 28.7 inch(es) / 72.9 cm

Additional Dimensions

• Overall Depth from Rear to End of Side Panel: 24-5/16" (61.8 cm)

• Overall Depth from Rear to Front of Door: 25-3/4" (65.4 cm)

• Add 1" to Overall Depth for Ranges with Backguards Installed Against a Combustible Wall

• Additions to Base Height to Top of Island Trim: Add 1" (2.5 cm)

• Additions to Base Height to Top of Backguard: Add 8" (20.3 cm)

• Additions to Base Height to Top of High Shelf: Add 23-1/2" (59.7 cm)

Shipping Dimensions

Weight 409.99 lb(s) / 185.97 kg
