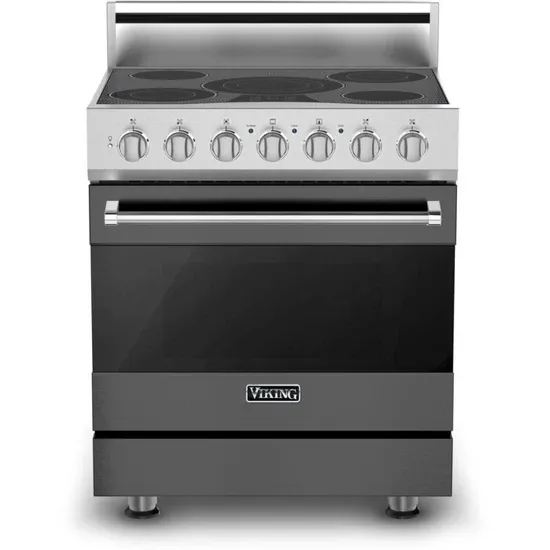

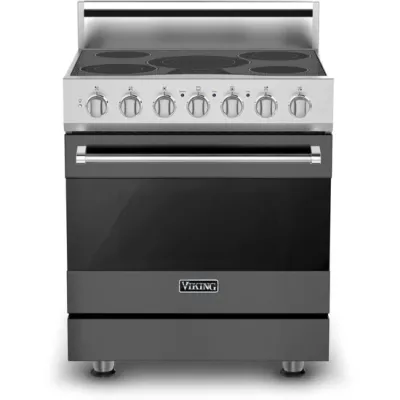

30"W./24"D. Electric Self-Clean Range-5 Burners-Damascus Gray

General

Series Name 3 Series

Fuel Type Electric

Installation Type Freestanding

Color Grey

Manufacturer Color Damascus Grey

Appliance Care

• Strong, Wear-Resistant Glass Ceramic Surface with Stainless Steel Frame Offers Excellent Cleanability

• Durable Metal Die-Cast Control Knobs with Childproof, Push-to-Turn Safety Feature

• Customer-Removable Knobs for Easy Cleaning

Cooktop

Burners/Elements 5

Burners/Elements Output

• Left Front Dual Element: 2,000 W

• Left Rear Single Element: 1,200 W

• Center Triple Element: 3,200 W

• Right Front Single Element: 1,200 W

• Right Rear Dual Element: 2,000 W

Burner/Element Size

• Left Front Dual Element: 8 1/2"

• Left Rear Single Element: 6 1/2"

• Center Triple Element: 12"

• Right Front Single Element: 6 1/2"

• Right Rear Dual Element: 8 1/2"

Elements Smoothtop

Oven

Capacity (cu. ft.) 4.7 cu.ft

Number of Ovens Single

Programs

• Bake

• Convection Bake

• Truconvec™ Convection Cook

• Convection Roast

• Hi Broil

• Medium Broil

• Low Broil

• Convection Broil

• Convection Dehydrate

• Convection Defrost

Features

Technologies

• Quickcook™ Surface Elements

• Rapid Ready™ Preheat

• Vari-speed Dual Flow™ Convection System

Convection Yes

Oven Light Yes

Self-Cleaning Yes

Additional Information

One Heavy-Duty Truglide Full Extension Oven Rack and Two Standard Racks

Concealed 10-pass Dual-bake Element

10-Pass Broiler with Heat Reflector

Strong, Wear-resistant Glass Ceramic Surface with Stainless Steel Frame

Durable Metal Die-Cast Control Knobs with Childproof, Push-to-Turn Safety Feature

Electrical Information

Information 240 V / 208 V

Accessories

Optional

• 6" High Backguard (RD301BG6SS)

• High Shelf (RD301HS24SS)

• Countertop Side Trim (RD24CSTSS)

• Countertop Rear Trim (P30CRTSS)

• Curb Base and Custom Curb Base Front (P30CBF4SS)

Dimensions

Class Width 30"

Width 29.88 inch(es) / 75.9 cm

Height 35.87 inch(es) / 91.1 cm

Depth (Without Handles) 25.75 inch(es) / 65.4 cm

Depth (Including Handles) 29.02 inch(es) / 73.7 cm

Shipping Dimensions

Weight 423.99 lb(s) / 192.32 kg

Warranty

Warranty

• One-Year Full – Complete Unit

• Five-Year Limited – All Gas Burners, Electric Elements (Dual Fuel)

• Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items
