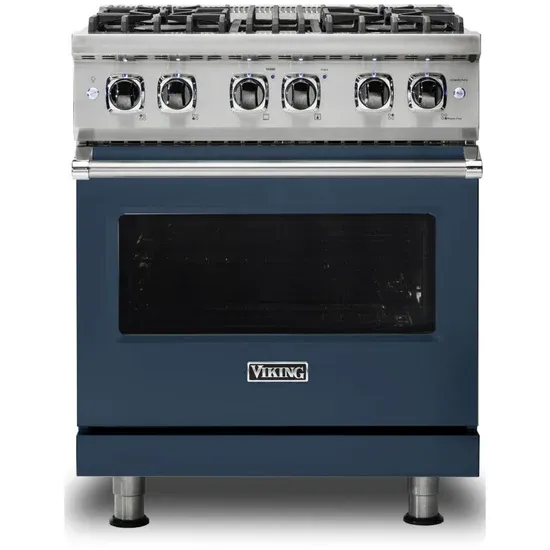

30"W./24"D. Dual Fuel Self-Clean Sealed Burner Range-4 Burners-Slate Blue

General

Series Name 5 Series

Fuel Type Dual Fuel - Natural Gas

Installation Type Freestanding

Color Blue

Manufacturer Color Slate Blue

Appliance Care

• One-Piece Tooled And Porcelainized Cooking Surface for Easy Cleanup

• Burner Caps are Easily Removable for Quick Cleaning

• Heavy-Duty, Porcelainized, Cast-iron Removable Surface Grates Provide Continuous Front-to-Rear, Left-to-Right Surface for Easy Movement of Large Pots

• Self-Cleaning Porcelain Ovens

• Concealed Bake Element(S) Make for Easy Cleanup of Oven Cavity

Cooktop

Burners/Elements 4

Burners/Elements Output

• Front Right TruPower Plus™ Burner: 18,500 BTU

• Other Burners: 15,000 BTU

Burners Sealed

Oven

Capacity (cu. ft.) 4.7 cu.ft.

Number of Ovens Single

Programs

High performance cooking modes include:

• Bake

• Convection Bake

• TruConvec™ Convection Cooking

• Convection Roast

• Hi Broil

• Medium Broil

• Low Broil

• Convection Broil

• Convection Dehydrate

• Convection Defrost

• Self-Clean

Features

Technologies

• VSH™ (VariSimmer-to-High) Pro Sealed Burner System

• VariSimmer™ Setting for All Burners

• SureSpark™ Ignition System

• Vari-Speed Dual Flow™ Convection System

• BlackChrome™ Metal Knobs

• SoftLit™ LED Lights

• GentleClose™ Door

• Rapid Ready™ Preheat

• TruGlide™ Full Extension Oven Racks

Convection Yes

Oven Light Yes

Self-Cleaning Yes

Additional Information

Automatic Re-Ignition; Surface Burners Light at any Position on the Knob and Re-Light if Extinguished Even on Lowest Setting

Patented Vari-Speed Dual Flow™ Convection System; The 8 1/2" Fan Works Bi-Directionally for Maximum Airflow and Excellent Cooking Results

Concealed 10-Pass Dual Bake Element Provides Precise Temperature Control

Large 10 Pass Broiler with Heat Reflector

Oven Has Six Porcelain Coated Rack Supports and Comes Standard with One Standard Oven Rack and Two Truglide™ Full Extension Oven Racks

Three Strategically Located Oven Lights

Commercial-Style Bezels Around Control Panel Knobs

One Piece Tooled and Porcelainized Cooking Surface

Electrical Information

Information

• 60 Hz

• 240 V – 26.8 A

• 208 V – 22.8 A

Accessories

Optional

• BG8530SS – 8"H. Backguard

• HS24530SS – High Shelf

• P24CSTSS – Countertop Side Trim (2 pieces)

• P30CRTSS – Cuntertop Rear Trim

• P30CBF4SS – Curb Base and Custom Curb Base Front

• LPKPDR – LP/Propane Conversion Kit

Dimensions

Class Width 30"

Width 29.88 inch(es) / 75.9 cm

Height 35.87 inch(es) / 91.1 cm

Depth (Without Handles) 28.03 inch(es) / 71.2 cm

Depth (Including Handles) 28.7 inch(es) / 72.9 cm

Additional Dimensions

Overall Height from Bottom:

Base Height

• To top of side trim – minimum 35-7/8" (91.1 cm), to maximum 37" (94 cm); legs adjust 1-1/8" (2.9 cm)

• Additions to Base Height

• To top of island trim – add 1" (2.5 cm); to top of backguard – add 8" (20.3 cm)

• To top of high shelf – add 23-1/2" (59.7 cm)

Overall Depth from Rear:

• To end of side panel – 24-5/16" (61.8 cm); to front of door – 25-3/4" (65.4 cm)

Convection Bake/Broil

• Overall Width – 25-5/16" (64.6 cm)

• Height – 16-1/2" (41.9 cm)

• Depth – 19-1/2" (49.5 cm)

• AHAM Standard* – 4.1 cu. ft. (*The AHAM Standard for measuring oven capacity subtracts the door plug and convection baffle dimension from the total oven volume)

Shipping Dimensions

Weight 409.99 lb(s) / 185.97 kg

Warranty

Warranty

• Two-Year Full – Complete Product

• Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items

• Five-Year Limited – All Gas Burners, Electric Elements (Dual Fuel)
