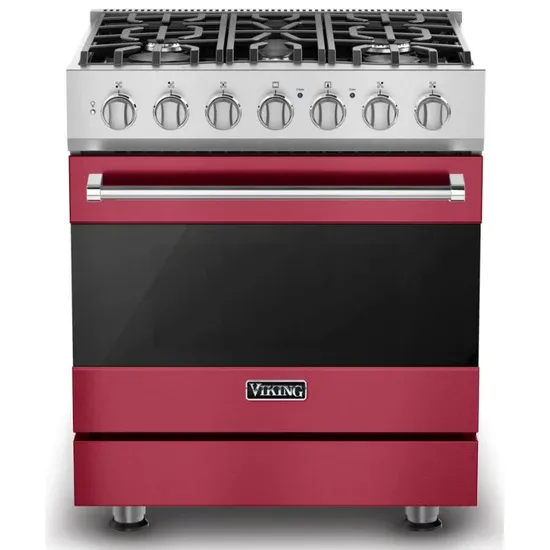

30"W./24"D. Dual Fuel Sealed Burner Range-5 Burners-Valentine

General

Series Name 3 Series

Fuel Type Dual Fuel - Natural Gas

Installation Type Freestanding

Color Red

Manufacturer Color Valentine

Appliance Care

• Permanently Sealed Burners – Spills Cannot Enter the One-Piece Tooled and Porcelainized Burner Box

• Durable Metal Die-Cast Knobs with Child-Proof, Push-to-Turn Safety Feature

• Customer Removable Knobs, Grates, and Burners/Caps for Easy Cleaning

• Grate Design Provides Continuous Cooking Surface for Easy Movement of Pots and Pans

Cooktop

Burners/Elements 5

Burners/Elements Output

• Left Front Burner: 18,000 BTU

• Left Rear Burner: 8,000 BTU

• Center Burner: 9,000 BTU

• Right Front Burner: 18,000 BTU

• Right Rear Burner: 12,000 BTU

Burners Sealed

Oven

Capacity (cu. ft.) 4.7 cu.ft.

Number of Ovens Single

Programs

• Bake

• Convection Bake

• TruConvec™ Convection Cook

• Convection Roast

• Hi Broil

• Medium Broil

• Low Broil

• Convection Broil

• Convection Dehydrate

• Convection Defrost

Features

Technologies

• Vari-Speed Dual Flow™ Convection System

• TruConvec™ Convection Cook

• SureSpark™ Ignition System

• Rapid Ready™ Preheat

• TruGlide™ Full Extension Oven Rack

Convection Yes

Oven Light Yes

Self-Cleaning Yes

Additional Information

Sealed Burners with Porcelainized, Cast-Iron Burner Caps

Continuous Grate

Concealed 10-Pass Dual Bake Element

10-Pass Broiler with Heat Reflector

Six Porcelain-Coated Rack Supports and Comes Standard with One Heavy-Duty Truglide™ Full Extension Oven Rack and Two Standard Racks

Halogen Oven Lighting

Electrical Information

Information 240 V / 208 V

Accessories

Optional

• 6" High Backguard (RD301BG6SS)

• High shelf (RD301HS24SS)

• Countertop Side Trim (RD24CSTSS)

• Countertop Rear Trim (P30CRTSS)

• Curb Base and Custom Curb Base Front (P30CBF4SS)

• LP Conversion Kit (RDLPKR

Dimensions

Class Width 30"

Width 29.88 inch(es) / 75.9 cm

Height 35.87 inch(es) / 91.1 cm

Depth (Without Handles) 25.75 inch(es) / 65.4 cm

Depth (Including Handles) 29.02 inch(es) / 73.7 cm

Shipping Dimensions

Weight 406.75 lb(s) / 184.5 kg

Warranty
