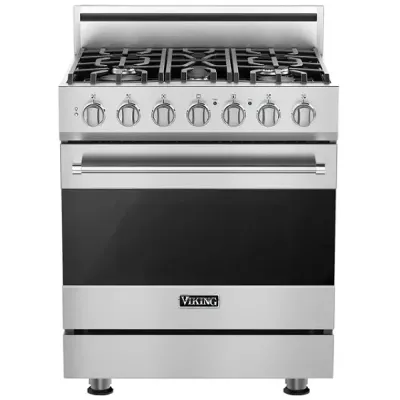

30"W./24"D. Dual Fuel Sealed Burner Range-5 Burners-Stainless

General

Series Name 3 Series

Fuel Type Natural Gas

Installation Type Freestanding

Color Stainless Steel

Manufacturer Color Stainless Steel

Appliance Care

• Customer-Removable Knobs, Grates, and Burners/Caps for Easy Cleaning

• Self-Clean Oven

Cooktop

Burners/Elements 5

Burners/Elements Output

• Left Front Burner: 18,000 BTU

• Left Rear Burner: 8,000 BTU

• Center Burner: 9,000 BTU

• Right Front Burner: 17,000 BTU

• Right Rear Burner: 12,000 BTU

Burners Sealed

Oven

Capacity (cu. ft.) 4.0 cu.ft.

Number of Ovens Single

Programs

• Natural Airflow Bake

• Convection Bake

• Broil

• Convection Broil

• Convection Dehydrate

• Convection Defrost

Features

Technologies

• ProFlow™ Convection Baffle

• TruGlide™ Oven Racks

• SureSpark™ Ignition System

Convection Yes

Oven Light Yes

Self-Cleaning Yes

Additional Information

Sealed Burners with Porcelainized, Cast-Iron Burner Caps

Oven Has Six Porcelain-Coated Rack Supports and Comes Standard with One Truglide™ Full Extension Oven Rack and Two Standard Racks

All Convection Functions Utilize The Proflow™ Convection Air Baffle; Specifically Designed to Ensure Balanced Air Flow for Even Heat Distribution

Two Halogen Oven Lights

15,000 BTU Broiler

Shipped Standard with Island Trim

Durable Metal Die-Cast Knobs with Child-Proof, Push-to-Turn Safety

Electrical Information

Information

• 120 V

• 60 Hz

• .74 A

Accessories

Optional

• 6" High Backguard (RD301BG6SS)

• High Shelf (RD301HS24SS)

• Countertop Side Trim (RD24CSTSS)

• Countertop Rear Trim (P30CRTSS)

• Curb Base and Custom Curb Base Front (P30CBF4SS)

• LP Conversion Kit (RDLPKR)

• Accessory Portable Griddle/Grill (RDPGD) Available for use Over Center Burner

Dimensions

Class Width 30"

Width 29.88 inch(es) / 75.9 cm

Height 35.87 inch(es) / 91.1 cm

Depth (Without Handles) 27.13 inch(es) / 68.9 cm

Depth (Including Handles) 29.02 inch(es) / 73.7 cm

Additional Dimensions

• Oven Interior Height: 16-1/8" (40.9 cm)

• Oven Interior Width: 23" (58.4 cm)

• Overall Height: to Top of Side Trim – 35-7/8" (91.1 cm) Min.; 37" (94.0 cm) Max., Legs Adjust – 1-1/8" (2.9 cm)

• Overall Depth from Rear: to Front of Side Panel – 25" (63.5 cm)

• Overall Depth from Rear: to Front of Door – 25-3/4" (65.4 cm)

• Overall Depth from Rear: to Front of Control Panel – 27-1/8" (68.9 cm)

• Overall Depth from Rear: to end of Knobs – 29" (73.7 cm)

Shipping Dimensions

Weight 406.75 lb(s) / 184.5 kg

Warranty
